ACCESSORIES

Plain	Geared

Specifications	Capacity

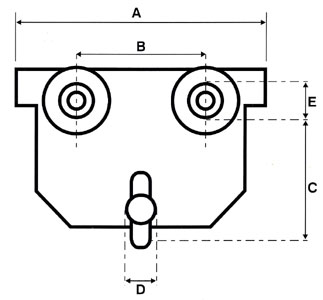

A	Overall length		½t	1t	2t	3t	5t
			198mm	245mm	277mm	330mm	380mm
B	Distance between axles (centre to centre)		100mm	120mm	130mm	160mm	170mm
C	Distance between base and hook bearing point		80mm	105mm	125mm	150mm	160mm
D	Shaft diameter		24mm	30mm	36mm	41mm	47mm
E	Load wheel diameter		55mm	67mm	80mm	100mm	110mm
1	Side plate thickness		6mm	8mm	10mm	12mm	16mm
2	Weight	Plain	5kg	9kg	14.5kg	23.5kg	36.5kg
		Geared	N/A	10kg	15.5kg	25kg	38.5kg
3	To fit beam width	Minimum	50mm	58mm	66mm	74mm	90mm
		Maximum	220mm	220mm	220mm	220mm	220mm
4	Minimum radius		1.3M	1.3M	1.5M	2M	2.5M
